Mindfulness Pillow:

Slow Stitching is a crafting method used for meditation. I want to combine slow stitching with soft fabrication and make lighting using conductive materials.

First, I started painting on my fabric. Then I started stitching on it.


The next step is using copper fabric to make a touch sensor (or a pressure sensor) and add LEDs to light up my piece.

Exploring and sticking copper fabric pieces with heat and bond on my main fabric.

Pillow iron.png

But before going any further, I first need to try my circuit on a prototype. I started to make the circuit on an Arduino board. Then I Tried it with copper tapes and an AT tiny. I used this code.

madar pill.png

But before going any further, I first need to try my circuit on a prototype. I started to make the circuit on an Arduino board. Then I Tried it with copper tapes and an AT tiny. I used this code.

It worked!

It worked!

Finally, it was time to work on the main piece.


I did not want to my circuit be visible on the surface so I used a second layer of fabric and start to stitch my circuit and connections on that.

I made jumper wires out of fabric strips and conductive threads.

pillow madara inside.png

I put tape on top of my fabric jumping wires so the threads won’t touch each other.

Fabric tape.jpg

Now that the second fabric layer is secure and my circuit is working, it is time to saw the back of the pillow.

pillow madara outside.png

And then fill it out.

fabric fill.jpg

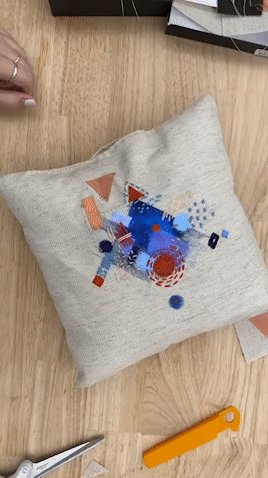

And voila!

pillow demo.gif

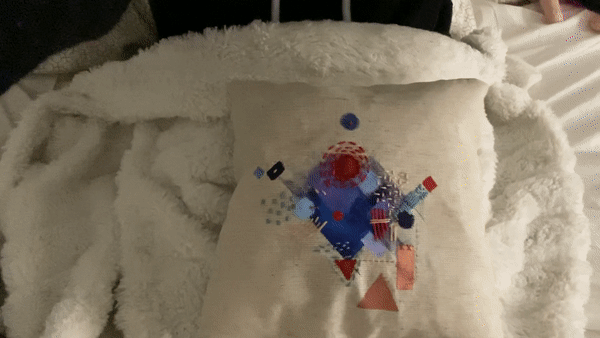

The red LED blinks (like a heart bit) at you touch both copper fabrics simultaneously, the LED on a triangle (at the bottom) just lights on as you touch the switch. The remaining 2 LEDs on the left and right turn on as you touch the switch and turn off if you touch it again (On and off switch).
